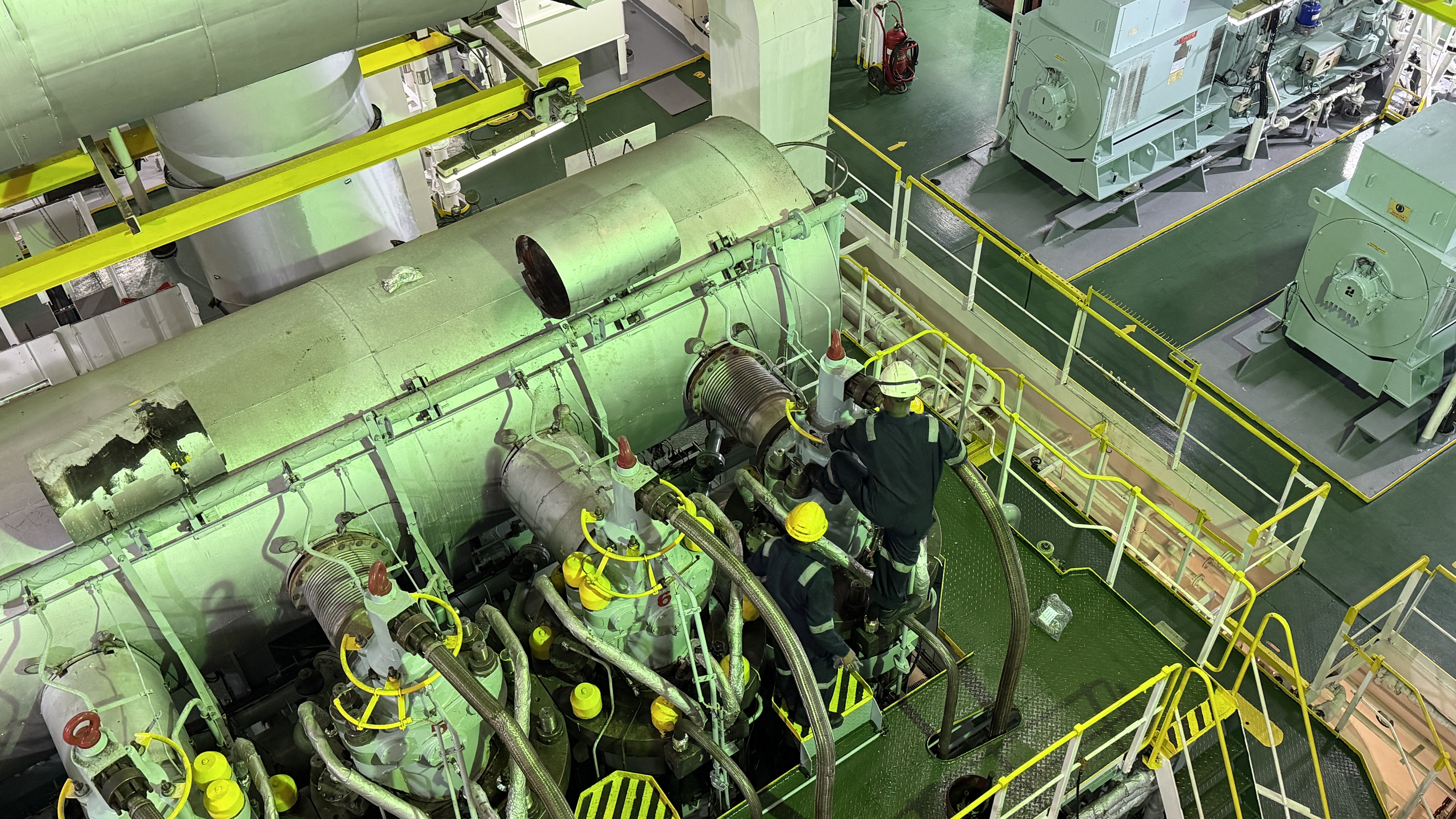

MAN B&W ME-C Fuel Injection System Explained
The ME-C fuel injection system calculates injection commands electronically and uses hydraulic or electro-hydraulic actuation to execute them. The exact architecture varies between engine generations, Mark versions, bore sizes and control-system revisions. Some arrangements use FIVA, while other generations or configurations may use separate ELFI and related electro-hydraulic control equipment, and pressure-booster, fuel-pump and fuel-valve designs can differ. Engine-specific MAN B&W, MAN Energy Solutions or Everllence documentation must therefore be used before treating any arrangement as universal.
What is the ME-C fuel-injection system?
The MAN B&W ME-C fuel-injection system is the electronically controlled arrangement that determines when fuel is injected, how long the injection event lasts and how the cylinder-specific injection command is executed. Unlike conventional MC or MC-C engines where injection timing is principally governed by camshaft and fuel-pump geometry, ME-C engines calculate injection commands through the Engine Control System and execute the event through hydraulic or electro-hydraulic actuation.
The system is still not purely electronic. The fuel valve, nozzle, high-pressure fuel pipe, pressure booster or equivalent injection-pressure generating equipment, fuel supply and combustion chamber remain mechanical and hydraulic components. A control system can command the correct event, but poor atomisation, leakage, sticking, worn pumping elements, poor fuel condition or low compression can still produce bad combustion.
Because ME-C fuel-injection architecture varies between engine versions, engineers should identify the exact engine type, control-system generation, cylinder-unit arrangement and fuel-equipment design before applying any troubleshooting or overhaul procedure.
ME-C versus MC-C fuel injection
On MC-C engines, fuel-injection timing and delivery are created mainly by mechanically timed camshaft, roller, fuel-pump and linkage arrangements. Troubleshooting focuses heavily on fuel-pump condition, timing setting, fuel-valve condition, compression, exhaust-valve leakage and fuel quality.
On ME-C engines, the control philosophy changes. The system calculates timing and fuel quantity electronically, then uses hydraulic or electro-hydraulic equipment to create the physical injection event. This gives more flexibility for authorised timing, duration and cylinder-specific control, but it also means diagnosis must include sensors, crank-angle reference, control-unit status, wiring, feedback, HPS hydraulic condition, FIVA or ELFI response, pressure-booster condition and conventional fuel-valve condition.
ME-C fuel-injection architecture
A simplified ME-C fuel-injection chain can be understood as: engine speed and load demand plus crank-angle information plus operating conditions -> Engine Control System -> cylinder-specific command -> control hardware such as ECU, CCU or MPC-based units where applicable -> FIVA or ELFI arrangement where fitted -> HPS hydraulic energy -> pressure booster or fuel-pump arrangement -> high-pressure fuel line -> fuel valve -> combustion -> performance and feedback data.
Electronic signal paths carry commands, status and feedback between sensors, control units and electro-hydraulic equipment. Hydraulic or servo-oil paths carry the energy from the Hydraulic Power Supply to the actuation equipment. Fuel paths carry conditioned fuel from the supply side through injection-pressure generating equipment, high-pressure lines and fuel valves into the combustion chamber.
Those paths should not be mixed up during troubleshooting. A repeated injection alarm may involve a signal or feedback problem, a hydraulic response problem or a fuel-side mechanical problem. A smoky cylinder may involve the injector, but it may also involve compression, exhaust-valve leakage, air supply or fuel quality.
How one injection event happens
- The control system determines the required injection timing and quantity from engine operating condition, load command and approved control logic.
- Crank-angle and speed reference establishes the exact timing position for the cylinder event.
- The cylinder-specific control hardware issues an injection command.
- An electro-hydraulic control component such as FIVA or ELFI, depending on configuration, directs HPS hydraulic energy.
- The pressure booster, fuel pump or equivalent injection-pressure generating component is actuated.
- High-pressure fuel is delivered through the fuel line to the fuel valve.
- The fuel valve opens according to the pressure and force balance of its specific design.
- Fuel is atomised into the combustion chamber and combustion begins according to cylinder condition and operating state.
- Injection ends when the command and hydraulic actuation change, allowing the injector to close.
- The system then resets hydraulically and mechanically for the next cycle.
Engine Control System and cylinder-control role
The Engine Control System decides when fuel should be injected and how much fuel should be delivered within the authorised operating strategy. Inputs may include speed and load command, crank-angle position, engine operating mode, pressure signals, feedback signals, safety logic, alarm status and other relevant measurements.
Cylinder-specific control hardware executes those commands for the relevant unit. Depending on ME-C generation and control-system revision, documentation may refer to ECU, CCU, MPC-based control hardware and related units. Exact terminology and allocation of functions vary, so engineers should use the engine-specific control-system manual instead of relying only on generic names.
Crank-angle and speed reference
Electronically timed injection depends on accurate crankshaft angular-position information. The control system must know where the crankshaft is before it can command an injection event at the correct cylinder timing position.
Missing, implausible or unstable timing-reference signals can create injection-related alarms, abnormal running or failure of the system to execute the expected event. Engineers should investigate sensor plausibility, wiring, connectors, signal history and related alarms according to maker procedures. Engine protections and timing-reference safeguards must not be bypassed.
FIVA operating principle where fitted
On ME-C configurations using FIVA, the Fuel Injection and Valve Actuation control function directs hydraulic energy according to electronic command and is involved in fuel-injection actuation and exhaust-valve functions on applicable engines. For the fuel-injection side, the control command is converted into FIVA control movement, which directs hydraulic oil flow and causes the downstream pressure booster or fuel-injection actuator to create the injection event.
Possible FIVA-related issues include sticking, contamination, internal leakage, slow response, hydraulic restriction, command/feedback disagreement and wiring or connector problems. A FIVA alarm does not automatically prove the FIVA itself has failed; hydraulic supply, oil cleanliness, downstream actuator condition and feedback plausibility must also be considered.
ELFI fuel-injection control where fitted
Some ME-C generations or configurations use Electronic Fuel Injection arrangements referred to as ELFI rather than the same FIVA arrangement used on other engines. Conceptually, ELFI performs the electro-hydraulic fuel-injection control function by translating electronic control commands into hydraulic action for injection equipment.
FIVA and ELFI terminology should not be used interchangeably without qualification. Engineers should first confirm the exact engine/control-system generation before following diagnostic procedures, ordering parts or interpreting alarms.
Hydraulic Power Supply relationship
The HPS supplies pressurised servo or hydraulic oil used as the energy source for ME-C injection actuation. The fuel system itself remains separate; fuel is not the hydraulic control medium. The HPS provides the force path that lets an electronic command become physical movement.
Insufficient HPS pressure, unstable pressure, contamination, leakage or poor downstream hydraulic response can influence injection execution. When several cylinders show similar injection-control symptoms, engineers should give more attention to common HPS supply, oil cleanliness, filtration, pressure sensors and shared control instrumentation.
Single-cylinder versus common hydraulic fault
A problem limited mainly to one cylinder may point toward that unit's fuel valve, pressure booster, FIVA or ELFI component, wiring, feedback, high-pressure pipe, fuel supply to the unit, compression condition or exhaust-valve condition. Similar symptoms across several cylinders may justify greater focus on common HPS pressure, fuel conditioning, filtration, booster/supply pressure, contaminated servo oil or shared instrumentation.
This is diagnostic reasoning, not a rigid rule. Alarm chronology, cylinder-performance data, actual inspection findings and maker troubleshooting guidance should decide the next step.
Fuel pressure booster or injection-pressure equipment
The pressure booster, fuel pump or equivalent injection-pressure generating equipment converts hydraulic actuation into the high fuel pressure required for injection. Design details vary, but the purpose is to produce controlled fuel delivery to the fuel valve at the commanded moment.
Inspection focus may include plunger and barrel or equivalent pumping elements where applicable, sealing condition, internal leakage, sticking, wear, fuel-side cleanliness, hydraulic actuation, drain or return behaviour and evidence of abnormal heating or contamination. Internal leakage or wear can reduce injection effectiveness even when there is no obvious external leak.
Fuel valve and injector operating principle
The fuel valve remains a critical mechanical component even on electronically controlled engines. Depending on design, the injector includes nozzle holes, needle or spindle, seating surfaces, spring or hydraulic opening arrangement and sealing features. It opens and closes according to the pressure and force balance of the specific valve design.
Defects such as poor atomisation, nozzle-hole deposits, erosion, leakage, sticking, poor seating or incorrect opening behaviour can cause poor combustion, afterburning, smoke, high exhaust temperature, piston crown deposits, liner contamination and uneven cylinder power.
Fuel valve inspection and testing
Fuel-valve inspection should cover nozzle condition, deposits, visible damage, leakage evidence, seating condition, spray/function testing, opening-pressure or calibration checks where applicable and maker-approved test-bench procedures. Universal pressures or adjustments should not be assumed.
Detailed injector overhaul, pressure testing and calibration should follow the applicable fuel-equipment manual and suitable test equipment. A separate Dieselmech technical article on fuel injector testing and calibration is the better place for full injector-overhaul workflow.
High-pressure fuel pipes and connections
High-pressure fuel pipes, connections and sealing faces must be inspected for leakage, fretting, vibration marks, damaged supports, poor clamping, contact-surface defects and leak-off evidence. Where double-wall or leak-detection arrangements are fitted, their drains, alarms and containment condition should be checked.
High-pressure fuel leakage is a serious fire and injection-injury hazard. Depressurisation, isolation, inspection and reassembly must follow maker and vessel safety procedures.
Fuel supply and conditioning
Injection quality depends on more than electronic command and hydraulic actuation. Fuel supply pressure, filtration, cleanliness, water contamination, fuel compatibility, viscosity control, temperature control where applicable and stable booster/supply operation all influence the final injection event.
Poor fuel conditioning can produce symptoms that resemble injector, pressure-booster or control faults. Engineers should therefore check the fuel system before condemning expensive electronic or hydraulic components.
Fuel viscosity and temperature control
Fuel condition at the injection equipment is important, especially during operation on residual fuels or alternative fuels with specific handling requirements. Incorrect viscosity or temperature can affect atomisation, pump behaviour, leakage tendency, combustion quality and starting or load response.
No universal fuel temperature or viscosity setpoint should be applied across all engines and fuels. The vessel's fuel-treatment procedure, fuel specification, maker manual and service guidance must be followed.
Fuel filtration and contamination
Fuel filters protect injection equipment from debris and contamination. Abnormal filter differential pressure where monitored, debris, water, catalytic fines or unstable fuel quality can accelerate wear or interfere with injector and pump operation.
Contaminants can damage fine fuel-equipment clearances and may lead to repeated injector or pressure-booster problems. Fuel-quality limits and actions should come from the applicable fuel specification, maker guidance, class requirements and vessel procedures.
Injection timing, duration and quantity
Electronic control allows ME-C injection timing, duration and quantity to be adapted according to load, speed, operating strategy and authorised maker settings. It may also support cylinder-specific balancing or optimisation within approved limits.
Engineers should not manipulate protected parameters, fuel-index values, timing settings or calibration values outside maker procedures. Proprietary control maps, timing angles and alarm thresholds are engine-specific and should not be guessed.
Injection profile and rate-shaping concept
Electronically controlled injection can permit more flexible injection characteristics than a fixed mechanical cam profile. The exact injection profile strategy depends on ME-C generation, control software, fuel equipment and approved engine tuning.
It is therefore safer to describe rate shaping and injection-profile control conceptually rather than claiming that every ME-C engine uses the same strategy.
Command versus actual response
A useful diagnostic question is whether the system did what it was commanded to do. Engineers should compare command status, available feedback, alarms, hydraulic pressure, fuel-equipment condition and resulting cylinder-performance data.
Not every mechanical movement inside the injection event has a direct sensor measuring it. Some evidence is directly measured, such as certain pressures, statuses or feedback signals. Other evidence is inferred from exhaust temperature, indicator diagrams, smoke, combustion noise and load balance.
Cylinder performance indicators for diagnosis
Fuel-injection diagnosis should consider exhaust-gas temperature, cylinder pressure or indicator diagrams where available, compression pressure, peak-pressure trends where applicable, engine load balance, smoke, combustion noise, scavenge observations and fuel-consumption trends.
One abnormal reading rarely identifies the root cause alone. High exhaust temperature may point toward fuel injection, but it may also involve exhaust-valve leakage, compression loss, charge-air problems, overload or load imbalance.
Indicator diagram and combustion analysis
Cylinder-pressure information can help engineers separate poor compression, delayed or abnormal combustion, low power contribution and exhaust-valve leakage from a pure fuel-injection equipment fault. Indicator diagrams are especially useful when compared cylinder-to-cylinder under similar operating conditions.
The interpretation should be tied to the specific engine, operating load and measurement method. Universal peak-pressure or compression-pressure limits should not be invented.
Common ME-C fuel-injection faults
- Poor fuel-valve atomisation, nozzle deposits, erosion, leakage or sticking.
- Pressure-booster, fuel-pump or pumping-element wear, sticking or internal leakage.
- FIVA or ELFI sticking, slow response, contamination, internal leakage or feedback disagreement.
- Low or unstable HPS pressure, contaminated servo oil or hydraulic leakage.
- Crank-angle, speed, sensor, wiring, connector or control-unit alarm issues.
- Fuel-supply pressure instability, viscosity or temperature problems, water or abrasive contamination.
- High-pressure fuel-pipe leakage, poor clamping, fretting or leak-off alarm condition.
- Low compression, exhaust-valve leakage, charge-air issues or overload that mimic injection faults.
Symptom, possible cause and inspection
| Symptom | Possible cause | Inspection |
|---|---|---|
| Poor combustion on one cylinder | Fuel-valve defect, delayed injection, FIVA/ELFI response issue, pressure-booster leakage, low compression, or exhaust-valve leakage | Compare exhaust temperature, indicator data, alarm history, injection status, fuel valve condition and compression evidence |
| High exhaust-gas temperature | Poor atomisation, afterburning, exhaust-valve leakage, compression loss, charge-air problem or load imbalance | Compare adjacent units, inspect fuel valve, review indicator diagrams and check exhaust-valve condition |
| Low cylinder power | Insufficient fuel delivery, pressure-booster wear, injector restriction, control command issue, low compression or poor air supply | Review cylinder balance, command/feedback data, fuel equipment, compression and scavenge condition |
| Cylinder power imbalance | Uneven fuel delivery, injector condition, timing response, compression difference or exhaust-valve leakage | Compare cylinder pressure, exhaust temperature, fuel valve test results and alarm history |
| Black smoke | Poor atomisation, over-fuelling, delayed combustion, overload, poor air supply or fuel quality issue | Inspect fuel valves, air/scavenge condition, turbocharger condition, fuel quality and load distribution |
| Grey or white smoke | Poor ignition, water contamination, low compression, cold condition, fuel quality issue or incomplete combustion | Check fuel condition, compression evidence, cylinder temperatures and operating state |
| Afterburning | Injector leakage, poor atomisation, delayed combustion, exhaust-valve leakage or overload | Inspect fuel valve seating/nozzle, indicator diagram, exhaust valve and load balance |
| Rough running | Cylinder imbalance, intermittent injection, control response issue, fuel quality, low compression or mechanical fault | Review trends, alarms, cylinder cut-out restrictions, indicator data and fuel-equipment condition |
| Abnormal combustion noise | Early/late combustion, poor atomisation, injector sticking, fuel quality or compression abnormality | Compare indicator data, injector test results, operating history and fuel condition |
| Delayed combustion | Poor atomisation, low compression, timing response issue, poor fuel condition or low temperature/viscosity control | Check indicator diagram shape, fuel valve, fuel conditioning and compression evidence |
| High or low cylinder-pressure trend | Injection timing/quantity difference, compression issue, exhaust-valve leakage or measurement inconsistency | Repeat measurement where appropriate and compare with fuel, air and mechanical condition |
| Repeated injection alarm | Sensor, wiring, control unit, FIVA/ELFI response, HPS instability or fuel-equipment issue | Review first alarm, command/feedback relationship, hydraulic pressure and cylinder equipment |
| FIVA-related alarm where applicable | FIVA sticking, contamination, internal leakage, feedback disagreement, wiring issue or downstream restriction | Check oil cleanliness, HPS pressure, connectors, feedback and actuated equipment |
| ELFI-related alarm where applicable | ELFI response issue, wiring/feedback fault, hydraulic supply problem or downstream injection-equipment issue | Confirm exact control generation and follow maker diagnostic checks |
| HPS pressure alarm | Common hydraulic supply issue, pump/filter/accumulator/sensor problem or leakage | Trend HPS pressure, inspect oil condition, filters, pumps, sensors and affected cylinders |
| Unstable injection response | Hydraulic pressure fluctuation, sticking control valve, contamination, wiring intermittency or fuel-side restriction | Compare hydraulic trend, control status, oil cleanliness and fuel-equipment response |
| Injector leakage | Poor seating, nozzle damage, deposits, spring/hydraulic opening issue or incorrect assembly | Bench test according to maker procedure and inspect nozzle/seating surfaces |
| Fuel-pipe leakage | Damaged sealing face, loose or incorrect assembly, vibration, fretting or support issue | Depressurise safely, inspect pipe, clamps, connections and leak-off arrangements |
| Excessive leak-off or return where applicable | Internal leakage in injector, pressure booster or control component | Compare drain/return behaviour and inspect component condition |
| Starting difficulty | Injection not commanded, low hydraulic pressure, no fuel delivery, injector fault, low compression or starting-air issue | Check alarm status, HPS availability, fuel supply, injector function and compression/starting-air condition |
| One unit fails to fire | Cylinder-specific command, control component, pressure booster, injector, fuel supply, compression or exhaust-valve problem | Review unit alarms, command status, fuel equipment and mechanical condition |
| Multiple cylinders lose power | Common HPS issue, fuel-supply problem, fuel quality, common sensor/control input or air-supply issue | Check common systems before changing cylinder-specific parts |
| Abnormal fuel consumption | Poor atomisation, leakage, load imbalance, poor combustion, fuel quality or engine tuning condition | Review fuel trends, cylinder balance, injector condition and performance data |
| Recurring injector damage | Fuel contamination, poor fuel conditioning, overheating, incorrect installation, abnormal combustion or unresolved system fault | Investigate fuel cleanliness, filtration, combustion condition and installation history |
Poor combustion on one cylinder workflow
- Compare cylinder exhaust temperature, power contribution and pressure data where available.
- Review alarm and event history, especially the first relevant alarm.
- Inspect injection-control status, feedback and command plausibility.
- Confirm HPS pressure and common hydraulic condition.
- Assess cylinder-specific FIVA or ELFI response where applicable.
- Inspect pressure booster or fuel-pump condition and drain/return behaviour where applicable.
- Inspect and test the fuel valve using maker-approved procedures.
- Check fuel supply to the unit and high-pressure pipe condition.
- Verify exhaust-valve operation and possible leakage.
- Check compression, piston, ring and liner condition if combustion evidence remains unclear.
Repeated injection alarm troubleshooting
A repeated injection alarm does not automatically mean the injector or electronic control unit has failed. Engineers should check alarm chronology, sensor/input plausibility, wiring and connectors, control-unit status, command/feedback relationship, HPS pressure, FIVA or ELFI response and physical fuel-injection equipment.
The first alarm in the sequence is often more useful than later consequential alarms. Replacing parts without confirming the alarm chain can leave the root cause untouched.
Smoke and afterburning diagnosis
Smoke and afterburning may be related to poor atomisation, injector leakage, delayed or incomplete combustion, low compression, overload, poor air supply, exhaust-valve leakage or fuel quality. Black smoke often suggests incomplete combustion or excess fuel relative to air, but the reason still needs evidence.
The practical check is to combine exhaust temperature, pressure diagrams, scavenge condition, fuel-valve test results, fuel quality and load balance rather than treating smoke colour alone as a final diagnosis.
High exhaust-temperature diagnosis
High exhaust temperature can result from fuel-injection defects, but it can also come from exhaust-valve leakage, compression loss, charge-air restriction, turbocharger issues, fouling, load imbalance or operating condition. Engineers should compare the affected cylinder with neighbouring units and check whether the fault follows the fuel valve or remains with the cylinder.
Starting difficulty or failure to fire
Starting difficulty should be approached by checking whether fuel injection is being commanded, hydraulic pressure is available, the cylinder-specific control components respond, fuel reaches the injector, the injector functions correctly and compression/starting-air conditions are adequate.
Safety interlocks and engine protections must not be bypassed. The purpose of diagnosis is to find the missing condition, not to force the engine through a protected state.
Fuel-injection maintenance and inspection focus
- Alarm and event-history review.
- HPS pressure stability and servo-oil cleanliness.
- FIVA or ELFI condition, response and connector integrity where applicable.
- Electrical wiring, plugs, shielding and feedback plausibility.
- Pressure-booster, fuel-pump or pumping-element condition.
- Fuel-valve testing, nozzle inspection, seating and leakage checks.
- High-pressure pipe supports, sealing faces and leak-off arrangements.
- Fuel filters, contamination history and purifier/treatment performance.
- Fuel temperature and viscosity control where applicable.
- Leak-off or return monitoring where fitted.
- Cylinder-performance trending through exhaust temperature, pressure data, smoke and load balance.
Before replacing FIVA, ELFI, pressure booster or injector
- Confirm the symptom and affected cylinder pattern.
- Review first alarm, repeated alarms and operating condition at the time.
- Verify HPS pressure, oil cleanliness and hydraulic stability.
- Check wiring, connectors, signal plausibility and feedback status.
- Check fuel supply, fuel filtration, viscosity/temperature control and contamination history.
- Inspect upstream and downstream components that could cause the same symptom.
- Compare command status with actual or inferred response.
- Assess compression, exhaust-valve condition and cylinder mechanical condition before blaming only the fuel equipment.
Root-cause investigation after repeated failures
Repeated injector, pressure-booster or injection-control component failures should trigger a root-cause review. Renewing parts without checking fuel cleanliness, hydraulic oil condition, fuel conditioning, HPS stability, control-component contamination, high-pressure line condition, combustion quality and cylinder mechanical condition can lead to recurrence.
Fuel-injection component inspection table
| Component | Function | Common Problems | Inspection Focus |
|---|---|---|---|
| ECS and cylinder control | Calculates and issues injection commands | Alarms, invalid inputs, command/feedback disagreement, control-unit fault | Alarm history, status pages, input plausibility and maker diagnostics |
| Crank-angle and speed sensing | Provides timing reference | Missing, noisy or implausible signal | Sensor condition, connectors, wiring and related alarms |
| HPS supply | Provides hydraulic energy for actuation | Low/unstable pressure, contamination, leakage, filter restriction | Pressure trend, oil condition, filters, pumps, accumulators and sensors |
| FIVA or ELFI where applicable | Directs hydraulic action for injection control | Sticking, slow response, internal leakage, feedback fault, contamination | Oil cleanliness, command/feedback, connectors, hydraulic response and drains |
| Pressure booster or fuel pump | Generates injection fuel pressure | Wear, sticking, leakage, poor response, fuel-side contamination | Drain/return behaviour, actuation, fuel condition, sealing and maker inspection criteria |
| Fuel valve/injector | Atomises fuel into cylinder | Nozzle deposits, leakage, sticking, erosion, poor seating | Visual inspection, test-bench function, spray/leakage checks and seating condition |
| High-pressure fuel piping | Carries high-pressure fuel to injector | Leakage, fretting, vibration, damaged sealing faces | Pipe condition, supports, clamps, connections and leak-off arrangement |
| Fuel supply/booster system | Supplies conditioned fuel to injection equipment | Low pressure, air ingress, unstable supply, pump or valve fault | Pressure trend, valves, strainers, pumps and operating condition |
| Filtration | Protects fuel equipment | Restriction, bypass risk, debris, water or catalytic fines | Differential pressure where monitored, filter contents and fuel analysis |
| Fuel conditioning | Controls fuel suitability for injection | Poor viscosity/temperature, incompatible fuel, water or contamination | Fuel treatment records, purifier operation, temperature/viscosity control and sampling |
Key operating and condition indicators
| Parameter/Observation | Why It Matters | What Abnormal Behaviour May Suggest | Related Checks |
|---|---|---|---|
| Injection-related alarms | Shows control-system concern or failed expected response | Sensor, feedback, hydraulic, control valve or fuel-equipment issue | First alarm, event chronology, command/feedback and affected cylinders |
| HPS pressure stability | Hydraulic actuation depends on usable pressure | Pump, filter, accumulator, leakage or sensor issue | HPS trend, oil condition, filters and sensors |
| FIVA/ELFI response where available | Indicates whether command becomes hydraulic action | Sticking, contamination, wiring, feedback or hydraulic restriction | Connector condition, servo-oil cleanliness and control status |
| Cylinder exhaust temperature | Shows combustion balance and heat release | Poor injection, exhaust-valve leakage, compression loss or load imbalance | Indicator data, fuel valve, exhaust valve and air supply |
| Cylinder pressure/indicator data | Separates combustion timing, compression and power contribution | Delayed combustion, low compression, leakage or fuel delivery difference | Fuel equipment, compression evidence and exhaust-valve condition |
| Cylinder power balance | Shows whether one unit contributes differently | Fuel delivery, compression, air supply or exhaust-valve issue | Load trend, pressure data and cylinder inspection |
| Fuel-valve test condition | Confirms mechanical injector function | Poor seating, leakage, nozzle blockage or sticking | Test bench, visual inspection and maker procedure |
| Fuel supply pressure | Injection equipment needs stable supply | Restriction, pump issue, valve problem or air ingress | Filters, booster pumps, strainers and line condition |
| Fuel temperature/viscosity | Affects atomisation and pump/injector behaviour | Poor conditioning or unsuitable fuel handling | Fuel-treatment records and maker/vessel setpoints |
| Filter condition | Shows contamination and restriction risk | Debris, water, cat fines or poor fuel handling | Filter contents, fuel samples and purifier operation |
| Leak-off or return behaviour | Can reveal internal leakage | Injector, pressure-booster or control-component wear/leakage | Compare units and inspect drains where applicable |
| Smoke and combustion noise | Practical sign of combustion quality | Poor atomisation, delayed combustion, overload, low compression or air shortage | Fuel valve, indicator data, scavenge air and load condition |
Measurements and acceptance limits
Condition assessment may include maker-specified fuel-valve opening or test parameters, leakage checks, pressure-booster or fuel-pump clearances where applicable, hydraulic response checks, HPS pressure, fuel-supply condition, sensor readings and combustion-performance measurements.
Actual numerical criteria must be obtained from the applicable engine-specific instruction book, ME control-system documentation, fuel-equipment manual, service letters, vessel procedures and class requirements. Universal values should not be copied between different ME-C engines.
Post-maintenance and post-repair verification
After maintenance, engineers should confirm cleanliness, correct component installation, correct restoration of hydraulic and fuel systems, leakage condition, alarm status, cylinder firing, exhaust-temperature comparison, cylinder balance, combustion/performance data and stable behaviour during controlled load-up according to maker and vessel procedures.
Commissioning should not rely on universal test values or unsafe shortcuts. Fuel, hydraulic and control-system checks must follow the applicable manual and onboard safety process.
Fuel injection versus exhaust-valve actuation
ME-C fuel injection and exhaust-valve actuation may share parts of the hydraulic/control architecture, especially where FIVA is involved, but they are distinct functions with different downstream equipment and symptoms. A FIVA-related issue should therefore be assessed by looking at both the shared hydraulic/control side and the specific fuel or exhaust-valve function affected.
ME-C fuel injection versus conventional MC-C injection
| Area | ME-C | MC-C |
|---|---|---|
| Command and timing source | Electronic control system calculates timing and quantity | Mechanical camshaft and fuel-pump arrangement dominate timing |
| Energy/actuation method | Hydraulic or electro-hydraulic actuation executes the command | Mechanical cam-driven pump action creates the injection event |
| Timing flexibility | More flexible within authorised maker control settings | More directly tied to mechanical cam and timing arrangement |
| Key control components | ECS, cylinder control, sensors, HPS, FIVA or ELFI where applicable | Camshaft, roller gear, fuel pump, linkage and timing setting |
| Diagnostic data | Alarms, status, feedback, pressure trends and cylinder-performance data | Mechanical inspection, timing checks, pump/injector tests and performance data |
| Maintenance focus | Control/hydraulic cleanliness plus conventional fuel equipment | Mechanical timing, pump wear, injector condition and linkage condition |
| Fault-isolation approach | Separate command, hydraulic response, fuel equipment and cylinder condition | Separate fuel pump, injector, timing, compression and exhaust-valve condition |
Future Technical Media
A useful diagram titled ME-C Fuel Injection Control and Energy Flow should show Engine Demand/Crank-Angle Sensors -> ECS/CCU -> FIVA or ELFI -> HPS Hydraulic Oil -> Fuel Pressure Booster -> High-Pressure Fuel -> Fuel Valve -> Cylinder Combustion. Electronic signal paths, hydraulic oil paths and fuel paths should be visually differentiated.
A second diagram titled Single ME-C Injection Event should show Timing Calculation -> Control Command -> Hydraulic Actuation -> Fuel Pressure Generation -> Injector Opens -> Injection -> Injector Closes. Both diagrams should be labelled as simplified conceptual arrangements that vary by ME-C generation and configuration.
FAQ
How does MAN B&W ME-C fuel injection work?
The control system calculates injection timing and quantity, then cylinder-specific hydraulic or electro-hydraulic equipment actuates fuel-pressure generation so the fuel valve injects fuel into the cylinder.
What controls injection timing on an ME-C engine?
Injection timing is calculated electronically using crank-angle reference, engine demand and other approved control inputs. The exact logic is maker-specific.
Does an ME-C engine use a camshaft-driven fuel pump?
ME-C engines do not rely on the same conventional camshaft-driven timing philosophy used by MC-C engines. Exact fuel-pressure generation equipment varies by engine version.
What is the role of the HPS in fuel injection?
The HPS supplies the hydraulic or servo-oil energy used to actuate injection-control equipment. Fuel remains a separate medium.
What does FIVA do during fuel injection?
Where fitted, FIVA directs hydraulic energy according to electronic command so the fuel-injection actuator or pressure-booster arrangement can execute the injection event.
What is ELFI?
ELFI refers to Electronic Fuel Injection arrangements used on certain ME-C configurations. It should not be treated as identical to FIVA without checking the engine-specific documentation.
What does the fuel pressure booster do?
It converts hydraulic actuation into the fuel pressure needed for injection, depending on the specific engine fuel-equipment design.
How does the ME-C fuel valve open?
The fuel valve opens according to the pressure and force balance of its specific design when high-pressure fuel reaches the injector.
What causes poor combustion on one ME-C cylinder?
Possible causes include poor injector atomisation, pressure-booster leakage, FIVA/ELFI response issue, low compression, exhaust-valve leakage, air-supply problems or fuel quality issues.
What causes an ME-C injection alarm?
Possible causes include sensor or wiring issues, command/feedback disagreement, hydraulic supply problems, FIVA or ELFI response issues, pressure-booster faults or fuel-equipment problems.
Can low HPS pressure affect fuel injection?
Yes. If hydraulic pressure is insufficient or unstable, electronically commanded injection actuation may become slow, incomplete or alarmed.
Can a bad injector cause a control-system alarm?
It can contribute to abnormal response or performance evidence, but a control alarm should still be diagnosed through command, feedback, hydraulic supply and wiring evidence.
What causes black smoke or afterburning on an ME-C engine?
Possible causes include poor atomisation, injector leakage, delayed combustion, overload, poor air supply, exhaust-valve leakage or fuel quality issues.
How can engineers distinguish an injector problem from a control or hydraulic problem?
Compare alarm chronology, command/feedback data, HPS condition, fuel-valve test results, cylinder-pressure evidence and whether the symptom is single-cylinder or common to several cylinders.
What should be checked before replacing a FIVA or ELFI component?
Confirm the symptom, first alarm, HPS condition, servo-oil cleanliness, wiring/connectors, fuel supply, downstream equipment and cylinder mechanical condition.
How is ME-C injection different from MC-C fuel injection?
ME-C injection is electronically commanded and hydraulically or electro-hydraulically actuated, while MC-C injection is primarily mechanically timed by camshaft and fuel-pump arrangements.
Technical glossary
| Term | Meaning |
|---|---|
| ECS | Engine Control System; calculates and supervises electronically controlled engine functions. |
| CCU | Cylinder Control Unit terminology used on applicable systems for cylinder-specific control functions. |
| HPS | Hydraulic Power Supply; provides pressurised hydraulic or servo oil for actuation. |
| HCU | Hydraulic Cylinder Unit terminology used where applicable for cylinder-level hydraulic/control equipment. |
| FIVA | Fuel Injection and Valve Actuation arrangement used on certain ME-C engines. |
| ELFI | Electronic Fuel Injection arrangement used on certain ME-C configurations. |
| Servo oil | Hydraulic oil used as the working medium for actuation and control equipment. |
| Pressure booster | Component that converts hydraulic actuation into fuel pressure for injection where applicable. |
| Fuel valve | Injector assembly that atomises fuel into the combustion chamber. |
| Injection timing | The crank-angle point at which injection is commanded or occurs, depending on context. |
| Injection duration | The commanded or effective length of the injection event. |
| Leak-off | Fuel or hydraulic leakage/return flow used for drainage, monitoring or component operation depending on design. |
| Command/feedback | Comparison between what the control system requested and what available sensors or inferred performance indicate happened. |
Need technical assistance?
If inspection, overhaul, troubleshooting, workshop repair, or onboard attendance is required, Dieselmech Group can review the symptoms, engine details, operating history, and available measurements before recommending the next practical step. Contact us at +65 6334 1855, email sales@dieselmech.com.sg, or submit an enquiry through the Contact Us page.
Technical note
This article is for general technical information. Actual procedures, limits, clearances, pressures, temperatures, torque values, and renewal criteria depend on the engine model, configuration, maker revision, service bulletin, vessel procedures, and class requirements. Manufacturer manuals and vessel safety procedures take precedence. Safety-critical work should be carried out by appropriately qualified personnel.
Published by Dieselmech Group Technical Team. For advice on a specific engine or fault, contact our marine engineers.
